Tek-CARE®400
Nurse Call System with Cat5 Wiring
TekTone®'s premium nurse call system, the Tek-CARE®400, is now even better with our new P5
remote stations and corridor lights. We've given our P5 equipment a clean contemporary look, while adding many improvements.
The Tek-CARE®400 P5 Cat5 nurse call system uses the same master stations as our Tek-CARE®400 system, and
includes all the same great integration features.
P5 patient stations include one or two DIN jacks, and dummy plugs are not required in unused jacks. Staff, duty and multipurpose
stations are also available, along with a resident pull-cord station and a resident check-in station with pull-cord and call button.
All P5 stations provide crystal-clear communication using full-duplex audio. Up to eight peripheral devices and two corridor lights
can be connected to each P5 remote station. Plus, all P5 stations are interchangeable, with simplified wiring that uses Cat5 cable
and plug-in connectors. No separate power cables!
P5 duty stations provide corridor light indication plus hands-free communication to the nurse master station from remote areas, such as utility rooms, examination rooms, and kitchen. The duty station's four colored LEDs use programmable flash rates to show patient calls, while its call tones mimic the pleasant tones of the master station.
The new, stylish P5 corridor lights have four multicolor LEDs that can be individually programmed to eight different colors*—and
since they use LEDs, there are no bulbs to replace. (*white, pink, red, orange, yellow, green, blue and purple.)

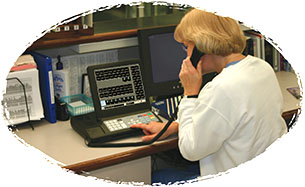

The Tek-CARE®400 P5 nurse call system's NC402TS master has a 10" color LCD touchscreen, and can display calls
from the entire facility. The master includes a built-in keyboard with water-resistant rubber overlay for creating
custom pages, and a membrane keypad for the most commonly used functions. Its small footprint increases the space
available at the nurses' station.
The Tek-CARE®400 P5 nurse call system integrates with a variety of ancillary systems. Pagers provide staff
with a simple, cost-effective way to increase mobility and productivity—by sending calls to them almost
instantaneously. The
with virtually any wireless telephone system, enabling two-way mobile communication between staff and patients.
The Tek-MMARS®400 Management Monitoring and Reporting Software monitors the nurse call system, providing detailed reports on all system activity—from any computer on the facility's network. Email output software can automatically send nurse call system notifications to staff email addresses, adding another means of communication.
With the ADT Interface using the HL7 Standard software, the nurse master station displays the patient's name and other information when a call is placed. And using the Versus Tracking Interface software and the facility's Versus Information System, the system automatically registers staff presence and clears routine calls.
The Tek-CARE®400 P5 Cat5 nurse call system is UL® 1069 Listed and CSA C22.2 No. 125 Certified.
Tek-CARE®400 is sold through regional TekTone® Elite Partners. To request more information, call our Sales Department at (800) 327-8466, option 2, or contact us Please include your contact information in your request.
